Acteon Piezotome® Cube

Acteon Piezotome® Cube

$12,000.00
$12,000.00
Sale Sold out
View full details
ACTEON · Piezotome

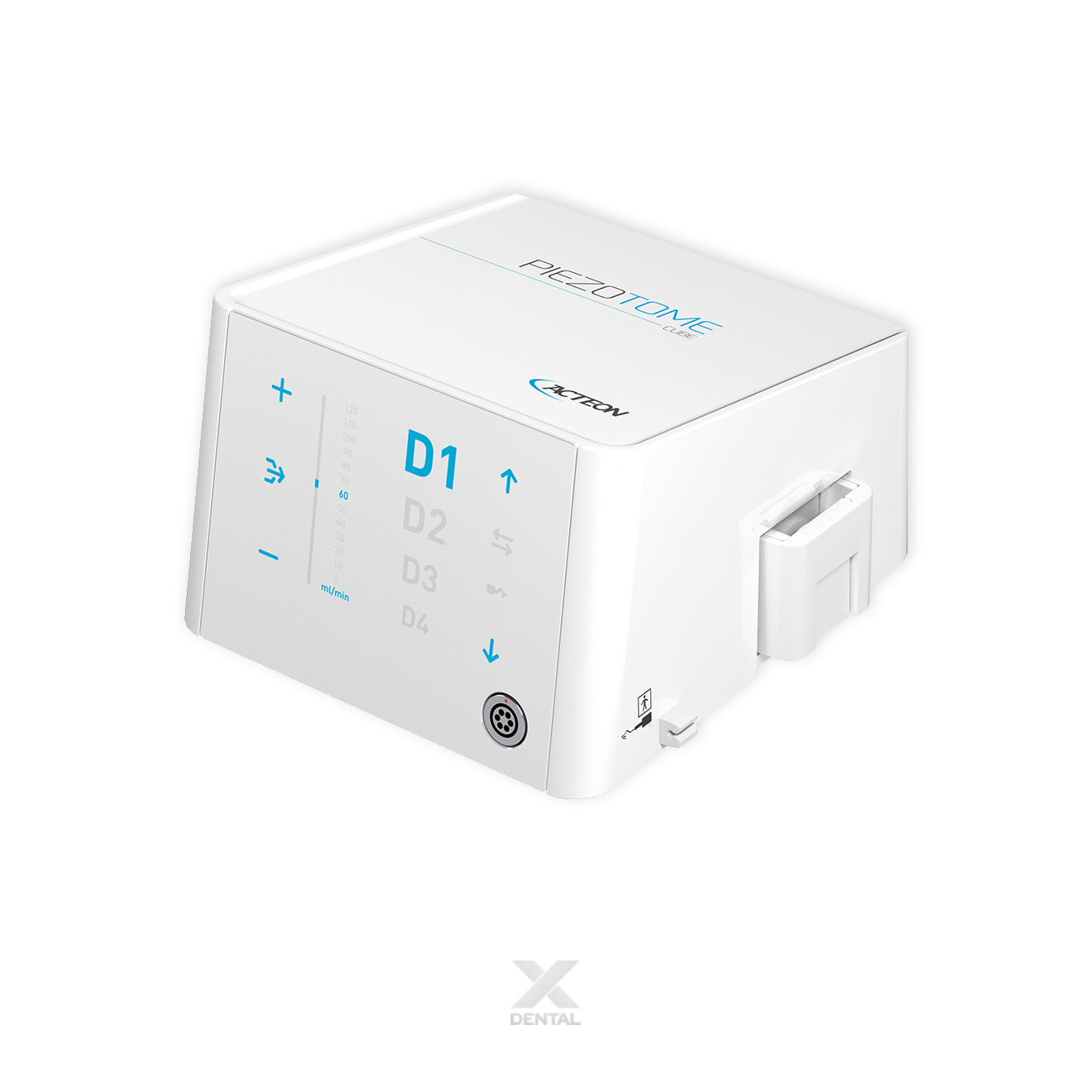

Piezotome® CUBE
Ultrasonic Bone Surgery Unit

Powerfully responsive, minimally invasive. Powered by patented Newtron® technology and D.P.S.I. smart power management, the Piezotome® CUBE delivers precise, atraumatic bone surgery — from extractions to sinus lifts — with 50% less post-operative pain and 98% less analgesic intake compared to rotary instruments.

Cuts Bone Only — Soft Tissue Safe D.P.S.I. Auto Power Adjustment CUBE LED Handpiece Included
Clinical Insight

What clinicians are saying

Real-world feedback from oral surgeons and implantologists using the Piezotome® CUBE in their practices.

"Socket preservation used to be a gamble with conventional forceps — you'd win the extraction and lose the bone. Since adopting the CUBE for all my extractions, I'm working flapless on the majority of cases. The LC tips let me sever the PDL without any rotational force, so the buccal plate is intact when I pick up the implant. It's changed what I consider a straightforward implant case."

Atraumatic Extraction · Immediate Implant Placement · Socket Preservation

"The D.P.S.I. has genuinely reduced the cognitive load during sinus surgery. The unit reads the bone density in real time and adjusts output — it boosts to push through dense cortical bone and backs off automatically as you near the membrane. Combined with the TKW tip sequence for crestal access, my Intralift technique is more predictable than ever."

Lateral & Crestal Sinus Lift · D.P.S.I. Power Control · Intralift™
Resources

Clinical Documentation

Product Brochure Product Brochure — Tips Surgery Tips
Indications

When to use the Piezotome® CUBE

One unit covering the complete scope of pre-implant and osseous surgery — from atraumatic extractions to complex sinus procedures.

Atraumatic Extraction — LC syndesmotomy tips widen the PDL space without rotational force, preserving the 4 bony walls for immediate or early implant placement. Flapless and sutureless protocols possible.
Lateral Sinus Lift — Diamond-coated SL tips deliver a thin, effortless window cut with minimal risk of sinus membrane perforation or antral artery damage. Cavitation spray provides haemostatic effect and clear visibility throughout.
Crestal Sinus Lift (Intralift™) — TKW tip sequence enables fully non-invasive crestal access: pilot drilling, floor fracture, canal widening, and membrane elevation — all without a lateral window.
Ridge Splitting & Crest Expansion — CS tip series (CS1→CS6) allows controlled, step-by-step crest expansion with increasing tip thickness, limiting the risk of bone fracture while preserving periosteum integrity.
Bone Surgery & Grafting — BS tip range covers osteotomy, osteoplasty, bone block harvesting, and ramus cortical bone cutting. Intraosseous temperature stays under control throughout, reducing risk of thermal necrosis.
Crown Lengthening & Piezocision™ — CE tips allow precise osseous contouring completely safe to adjacent gingiva. PZ tips perform micro-surgical corticotomies for accelerated orthodontics — treatment up to 3–4× faster with minimal incisions, flapless and sutureless.
What's in the Box

Kit contents

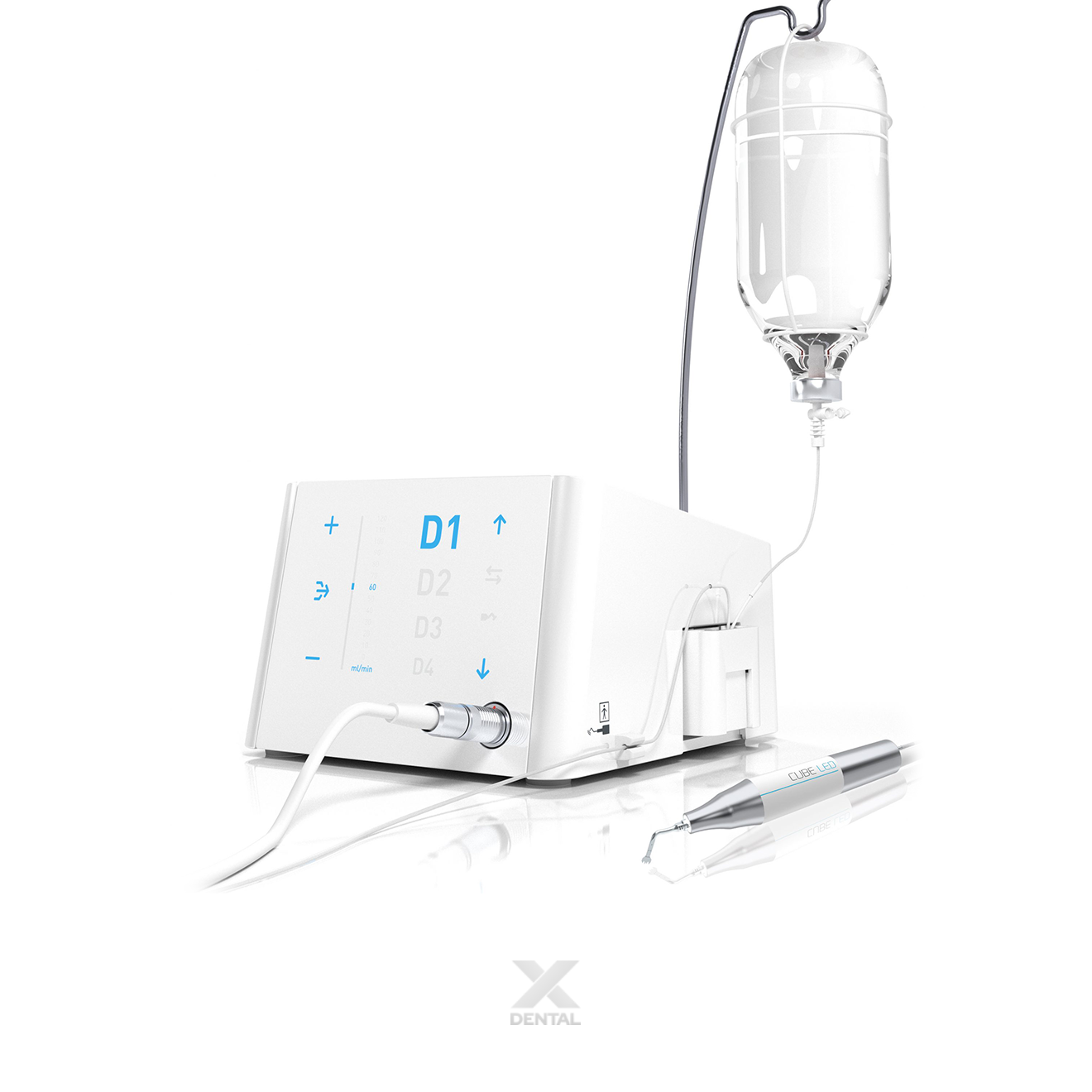

Standard kit includes the unit, CUBE LED handpiece, Essential tip kit, and all accessories required for immediate clinical use.

Component Detail Q'ty
Piezotome® CUBE Unit Newtron® ultrasonic generator with D.P.S.I., touch-sensitive control interface, built-in peristaltic irrigation pump 1
CUBE LED Handpiece + Autoclavable Cord 6 ceramic rings for maximum power · Full white LED ring (100,000 Lux) · Lighter with perfectly balanced, rotation-free ergonomic design 1
Essential Tip Kit (F87528) BS1S, BS4, LC2, SL1, SL2, SL3 — the 6 fundamental tips covering osteotomy, osteoplasty, syndesmotomy, and lateral sinus lift 1 kit
Dynamometric Wrench Robust stainless steel torque wrench for fast, accurate tip installation 1
Multifunction Footswitch Weighted multifunction pedal for hands-free device control during surgery 1
Irrigation Bracket For IV bag suspension and stable irrigation line routing 1
Handpiece Holder Autoclavable holder with 2 positions — "Clip" table or "On" table — protects against accidental fall 1
Autoclavable Irrigation Lines Reusable; fast and intuitive pump insertion; precise ml/min flow rate to tip end 2
Autoclavable Irrigation Clips Secures external irrigation line along handpiece cord 5
Sterile Disposable Perforators Single-use irrigation line perforators for sterile setup 15

Sold separately: Extraction II Kit (F87546) · Bone Surgery II Kit (F87509) · Sinus Lift II Kit (F87519) · Intralift™ II Kit (F87536) · Crest Splitting II Kit (F87567) · Crown Extension Kit (F87554) · Sterilisation cassette · Individual tips

Specifications

Technical specifications

Device type Ultrasonic piezoelectric bone surgery unit
Dimensions (L × H × D) 251 × 160 × 271 mm
Weight 3.5 kg
Footswitch (L × H × D) 173 × 140 × 176 mm · 1 kg
Ultrasonic frequency 28 – 36 kHz (auto-adjusted per tip)
Power modes D1 – D4
Irrigation Built-in peristaltic pump
Tip compatibility Full Piezotome® CUBE tip range (LC, BS, SL, TKW, CS, CE, PZ series)
Origin Made in France
Clinical Tips

Getting the most from your Piezotome® CUBE

Practical guidance from clinical experience and ACTEON® applications support.

1
Trust D.P.S.I. — avoid manual power overrides. The system continuously monitors pressure applied, tip design, and bone density, automatically boosting cutting power up to +30% against dense cortical bone and reducing output by −10% near soft tissue. Manually pushing beyond the D.P.S.I. recommendation — particularly during sinus floor osteotomy — increases perforation risk and thermal load.
2
Follow the correct tip sequence for each procedure. For extractions, start with LC1 or LC2 for syndesmotomy before progressing to wider tips. For Intralift™, follow the TKW sequence (TKW1 → TKW2 → TKW3 → TKW4 → TKW5) — each tip is calibrated to a specific diameter and function. Skipping steps increases membrane risk and reduces the predictability of crestal elevation.
3
Maintain consistent irrigation flow throughout every case. The peristaltic pump delivers saline directly to the tip end regardless of handpiece orientation. Verify irrigation line seating before each procedure — the external line design allows immediate visual confirmation during surgery. Interrupted flow is the primary cause of localised bone heating and impaired healing.
4
Leverage the LED ring in posterior and confined access sites. The full white ring at 100,000 Lux eliminates shadow zones in narrow surgical fields — second molar sites, posterior sinus windows, and periradicular areas. Orient the handpiece so the LED ring faces the area of interest, and use the rotation-free grip to maintain that position without tiring the wrist.
5
Torque tips correctly before every case using the dynamometric wrench. The included stainless steel wrench ensures each tip is seated to the correct torque. Under-torqued tips generate micro-vibration loss and reduce cutting efficiency; over-torqued tips damage the handpiece thread. Inspect tip surfaces for wear — surface treatments extend lifespan, but tips showing visible deformation or blunting must be replaced.
⚠ Clinical Notice: The Piezotome® CUBE is a Class IIa medical device intended for use by trained oral surgeons and dental practitioners with appropriate surgical training. Single-use perforators must not be reused. Follow AS/NZS sterilisation guidelines for all reusable handpieces, tips, and irrigation lines. Refer to the Instructions for Use available at acteongroup.com for full contraindication, maintenance, and safety information.
