Taurus C1
Dental Chair Unit
A chair-mounted dental unit built for everyday clinical efficiency. Taurus C1 pairs a clean, space-saving ergonomic design with essential clinical functions and a soft, wide-range chair movement — giving practices a dependable, fully-equipped operatory at a sensible price point.
Built around what a busy practice actually needs
Three simple commitments — a clean design, the essential functions a clinic relies on every day, and a price that makes sense.
A chair-mounted unit with an ergonomic, space-saving profile — built for a clean, efficient working environment.
Selected essential configurations are fitted as standard. Many parts are removable for thorough disinfection, with a light-sensor cup filler included.
Equipped with only the configurations a practice actually needs — keeping pricing sensible without compromising on day-to-day reliability.
Designed for comfortable, efficient everyday use
Every detail of Taurus C1 is built to support a smooth clinical workflow — for both the operator and the patient.
Control
Easy control, intuitive layout
Direct-access buttons and an intuitive colour scheme make every function easy to find and operate — for both doctor and assistant. An LCD display panel is available as an option.
Ergonomics
Wide range, soft chair movement
Chair height adjusts smoothly across a wide 400mm–695mm range, with soft, controlled motion that finds the best position for both patient comfort and operator access.
Safety
Built-in protection during chair movement
The Safety Auto System automatically retracts the backrest and assistant table the instant contact is made with any object — reducing the risk of collision during routine chair operation.
Patient Comfort
A comfortable position for every patient
The twin-articulating headrest adjusts through multiple angles, helping deliver an optimum head position for both adult and paediatric patients (optional fitting).
Thoughtful details, throughout
The spittoon bowl is easily removable without the need for any instrument — simple to clean and wash between patients.
Ensures zero obstruction during patient entry and exit, while still providing comfortable arm support during treatment.
Reaches optimal positions for both maxillary and mandibular treatments. C-200 LED operating light available as an option.
A compact, swiveling cuspidor body gives the assistant improved access to the patient throughout treatment.
Open or closed instrument holders available for either delivery system (over-patient or cart), with a dedicated control panel for the assistant's table.
A left-handed configuration is available as an optional setup to suit the operator's preferred working side.

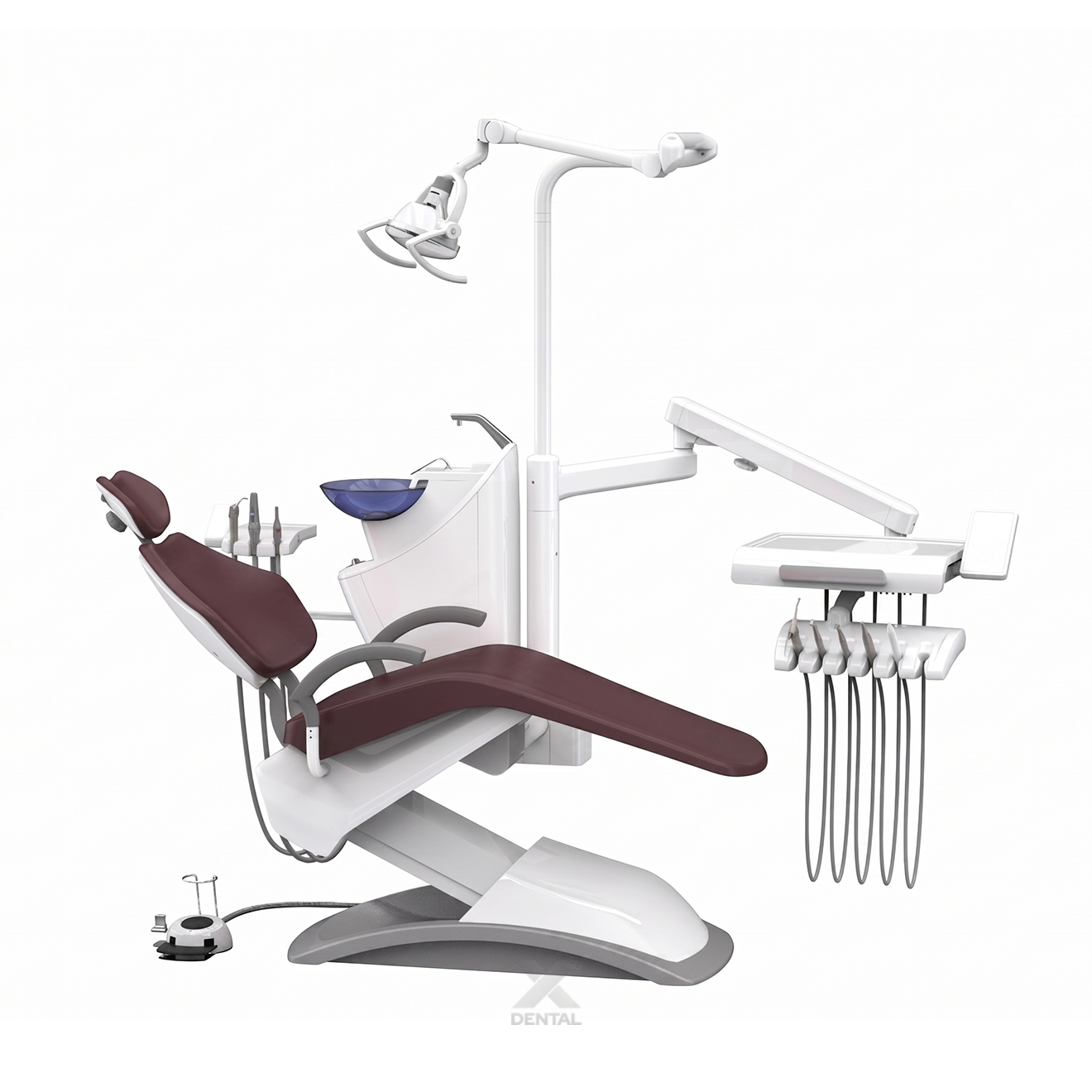

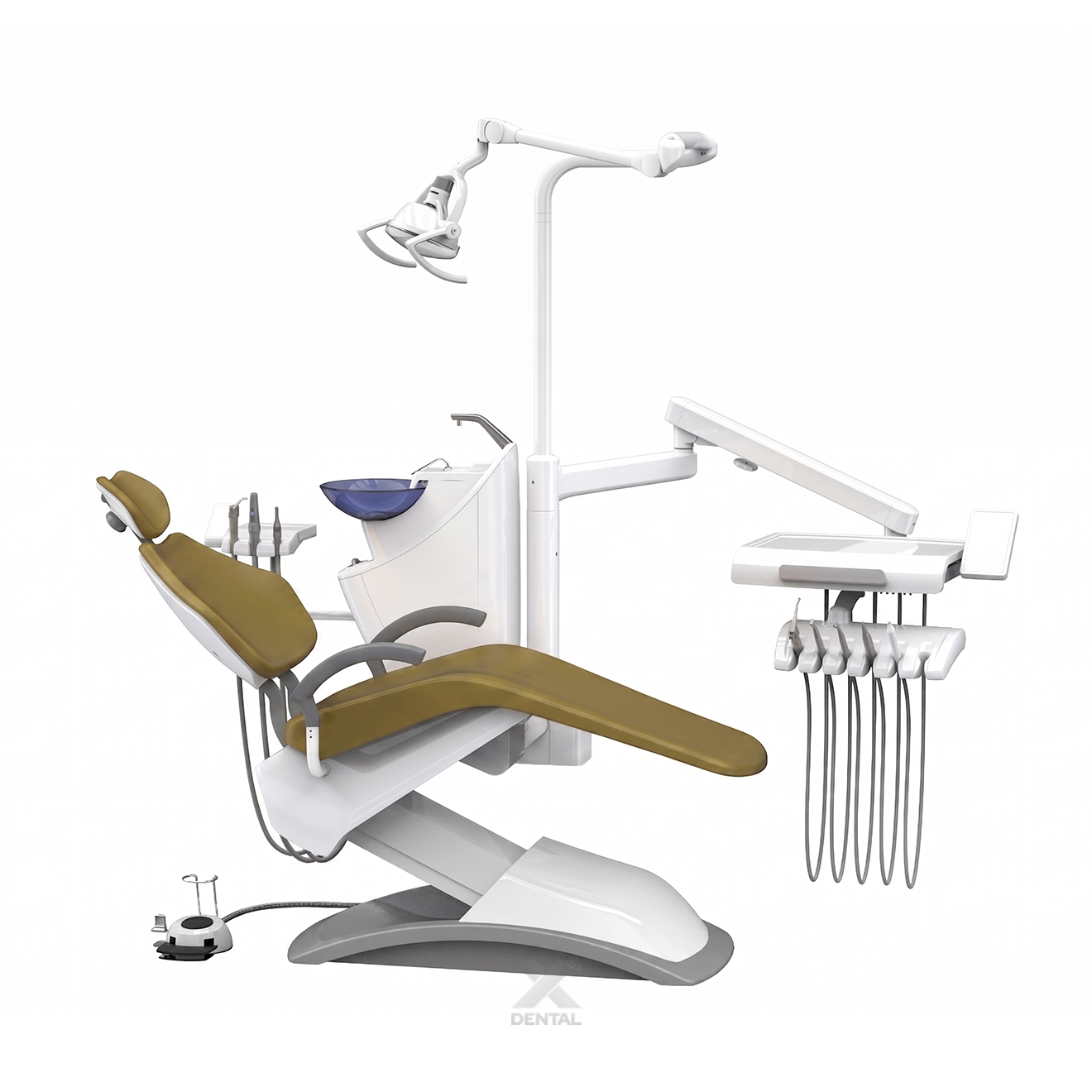

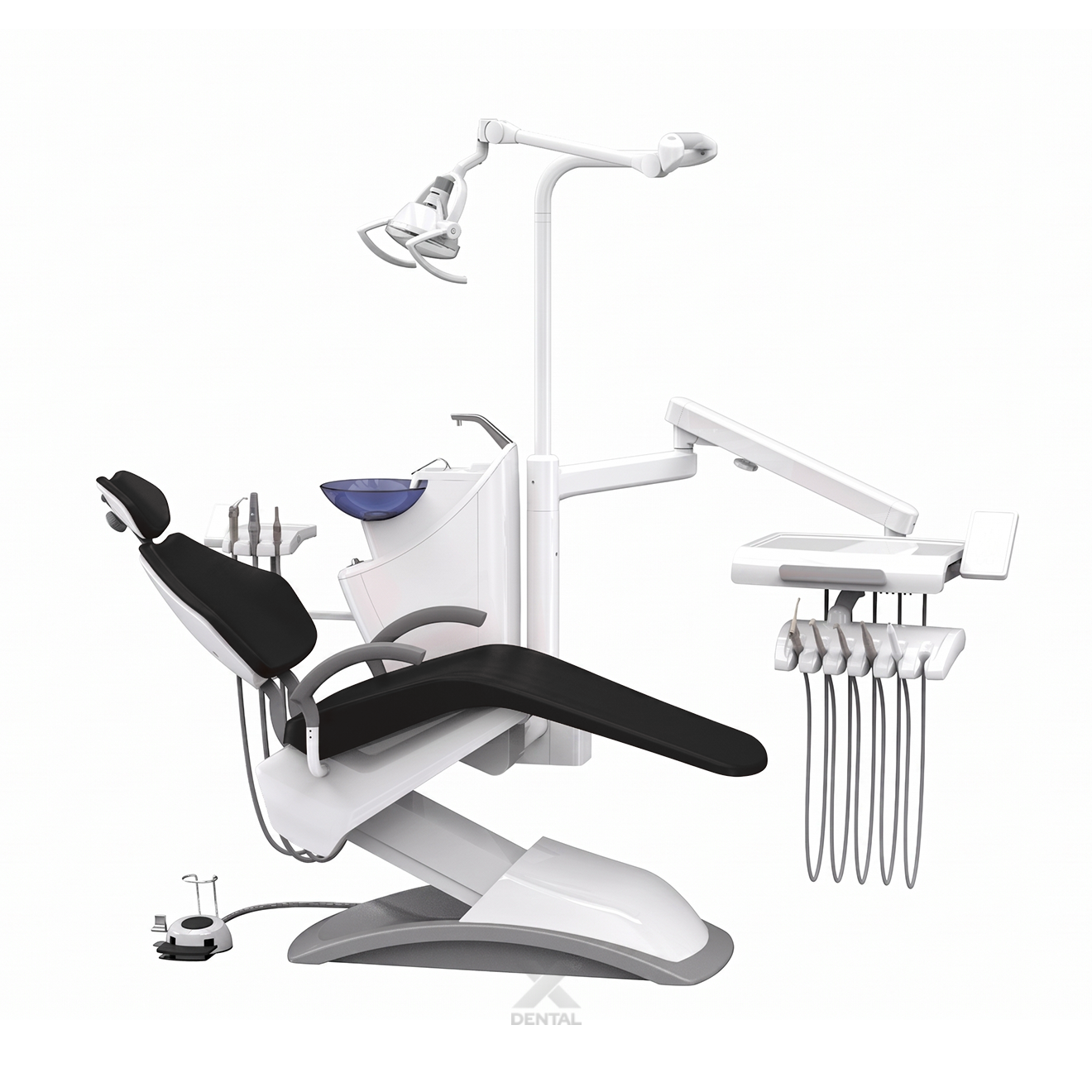

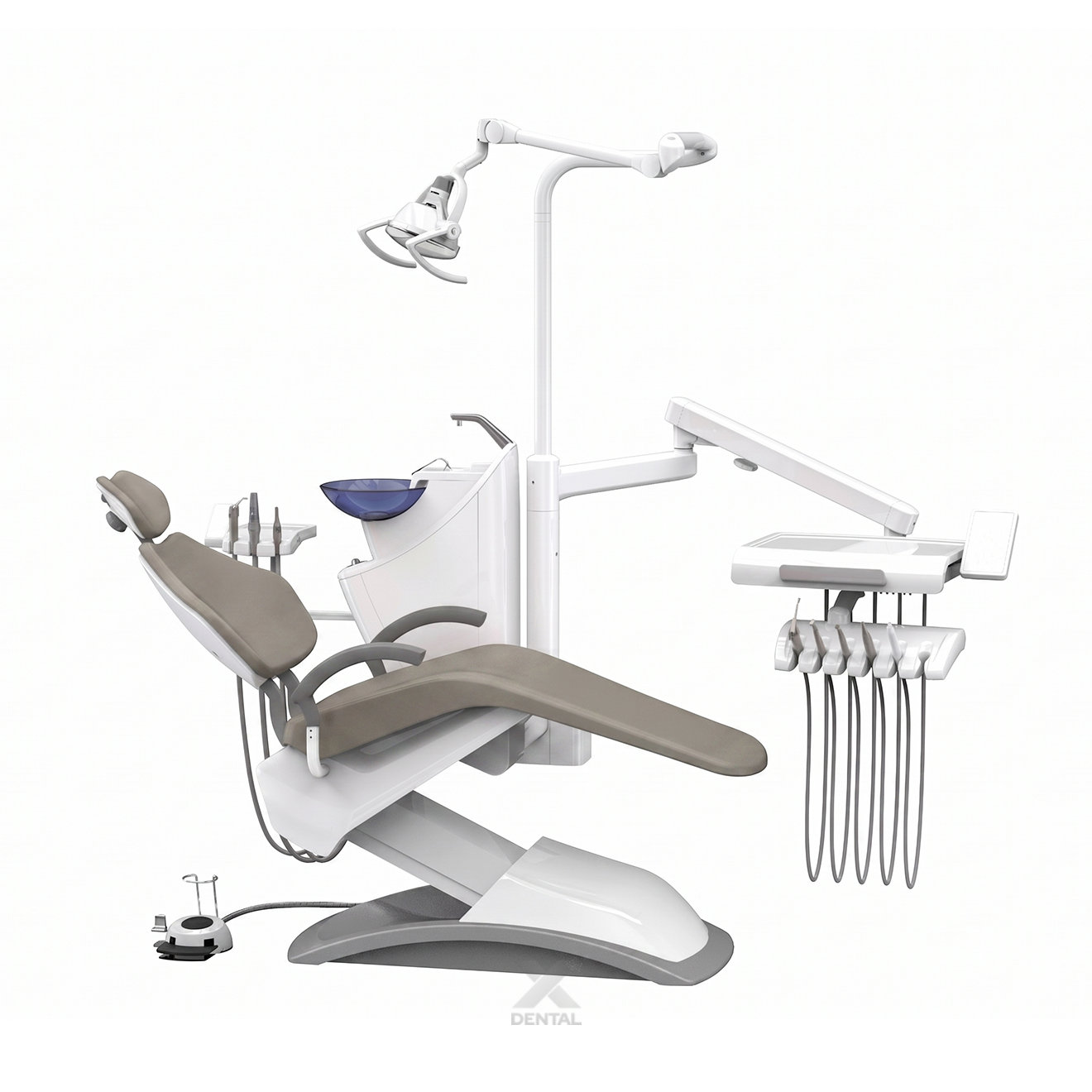

15 upholstery colours
Match the chair upholstery to your practice's interior — from clinical neutrals to bold statement tones.
Swatches shown are indicative — refer to the product brochure or request a physical sample for exact colour matching.
Standard equipment & instruments
As supplied by X Dental, Taurus C1 arrives fully equipped — combining the chair's standard fittings with a complete instrument package, ready for clinical use from day one.
| Component | Detail | Q'ty |
|---|---|---|
| Taurus C1 Chair Unit | Chair-mounted dental unit, hydraulic motor seat movement, 2-position chair auto program | 1 |
| Delivery System | Continental or International type — instrument holder for doctor's table (open or closed) | 1 |
| Assistant's Table | Control switch panel with direct-access function buttons | 1 |
| Saliva Ejector | Standard fitting | 1 |
| Vacuum Syringe | Standard fitting | 1 |
| CL-2000 Operating Light | Standard fitting — reaches optimal positions for maxillary and mandibular treatments | 1 |
| Foot Controller | Standard fitting | 1 |
| EMS LED Scaler | Included with X Dental package | 1 |
| MC3 Handpiece Motor | Included with X Dental package | 1 |
| LED Operating Light Upgrade | Included with X Dental package | 1 |
| Optima MX2 INT | Included with X Dental package | 1 |
| Dentist Stool | Included with X Dental package | 1 |
| Assistant Stool | Included with X Dental package | 1 |
Note: As supplied by X Dental in Australia, all instrument options listed in the SHINHUNG brochure (EMS LED Scaler, MC3, LED Light, Optima MX2 INT, Dentist Stool, Assistant Stool) are bundled in as standard inclusions — no separate instrument options apply.
Technical specifications
| Device type | Chair-mounted dental unit |
| Delivery type | Continental · International · Cart type |
| Handedness | Right-handed standard · Left-handed setup optional |
| Seat length | 1820 mm |
| Chair elevation range | Min. 400±20mm – Max. 695±20mm |
| Backrest inclination | 0±2° – 70±2° |
| Seat movement | Powered by hydraulic motor |
| Chair auto position program | 2 positions |
| Rated voltage | AC 220V, 60Hz (110V, 50Hz available) |
| Power consumption | 1.0 kVA |
| Weight | 165±5 kg |
| Upholstery colours | 15 options — Red, Beige, Bronze, Olive, Blue, Navy, Purple, Black, Orange, Mango, Golden Brown, Mint Green, Dark Blue, Purple Pink, Walnut |
| Manufacturer | Shinhung Co., Ltd. — Seoul, Korea |
| Origin | Made in Korea |
Shinhung reserves the right to modify the design or specifications with prior notice to allow for ongoing product improvement.
