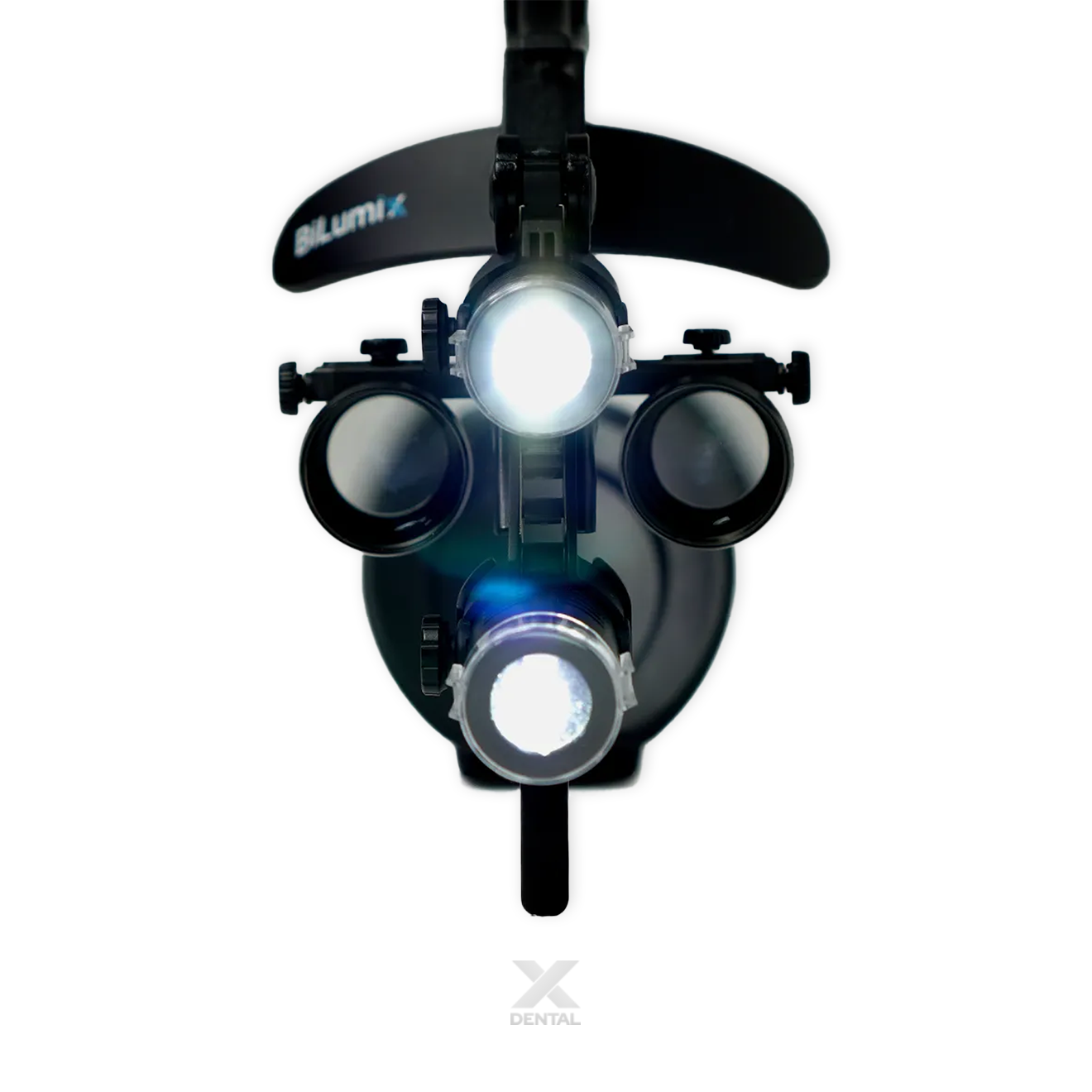

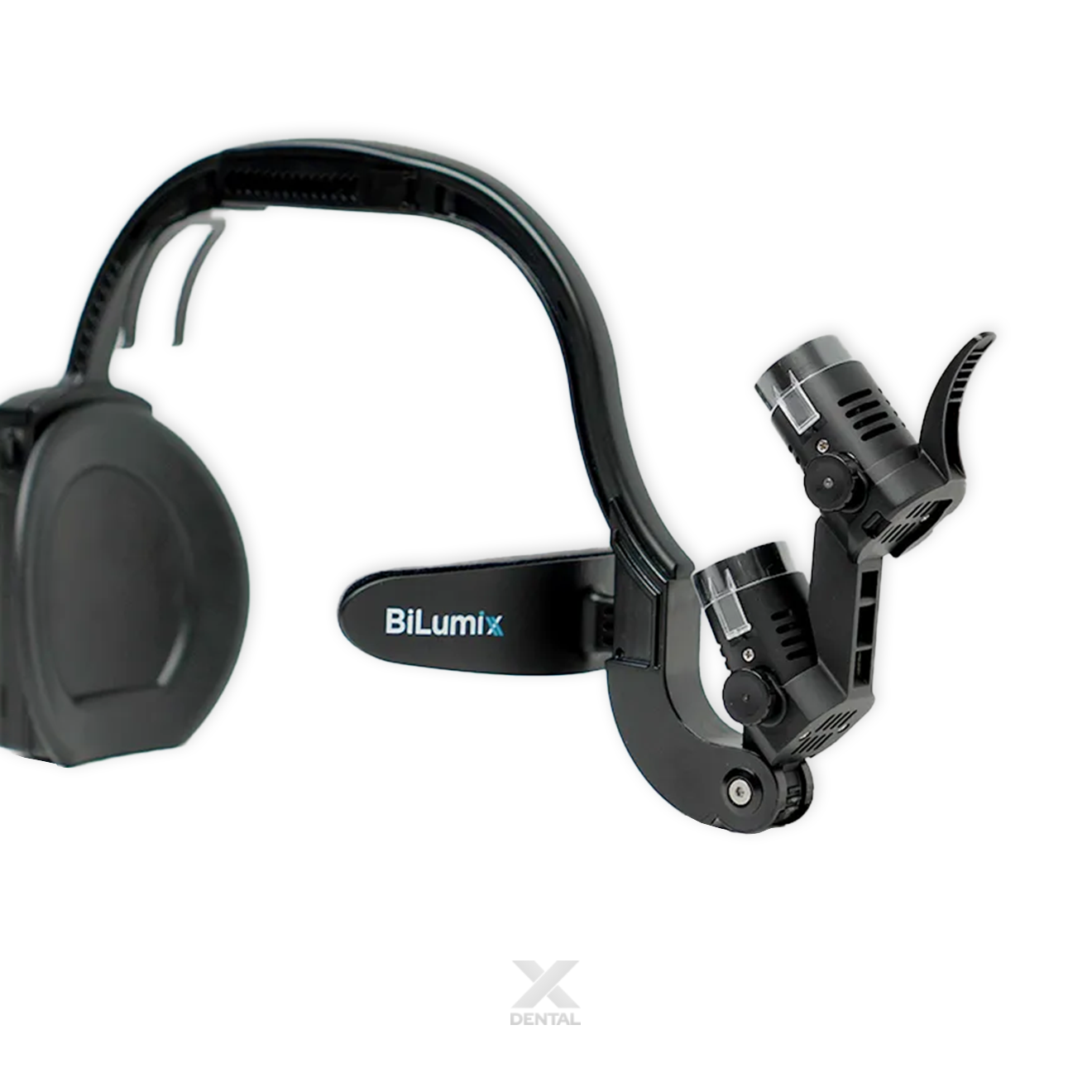

Kye Features
-

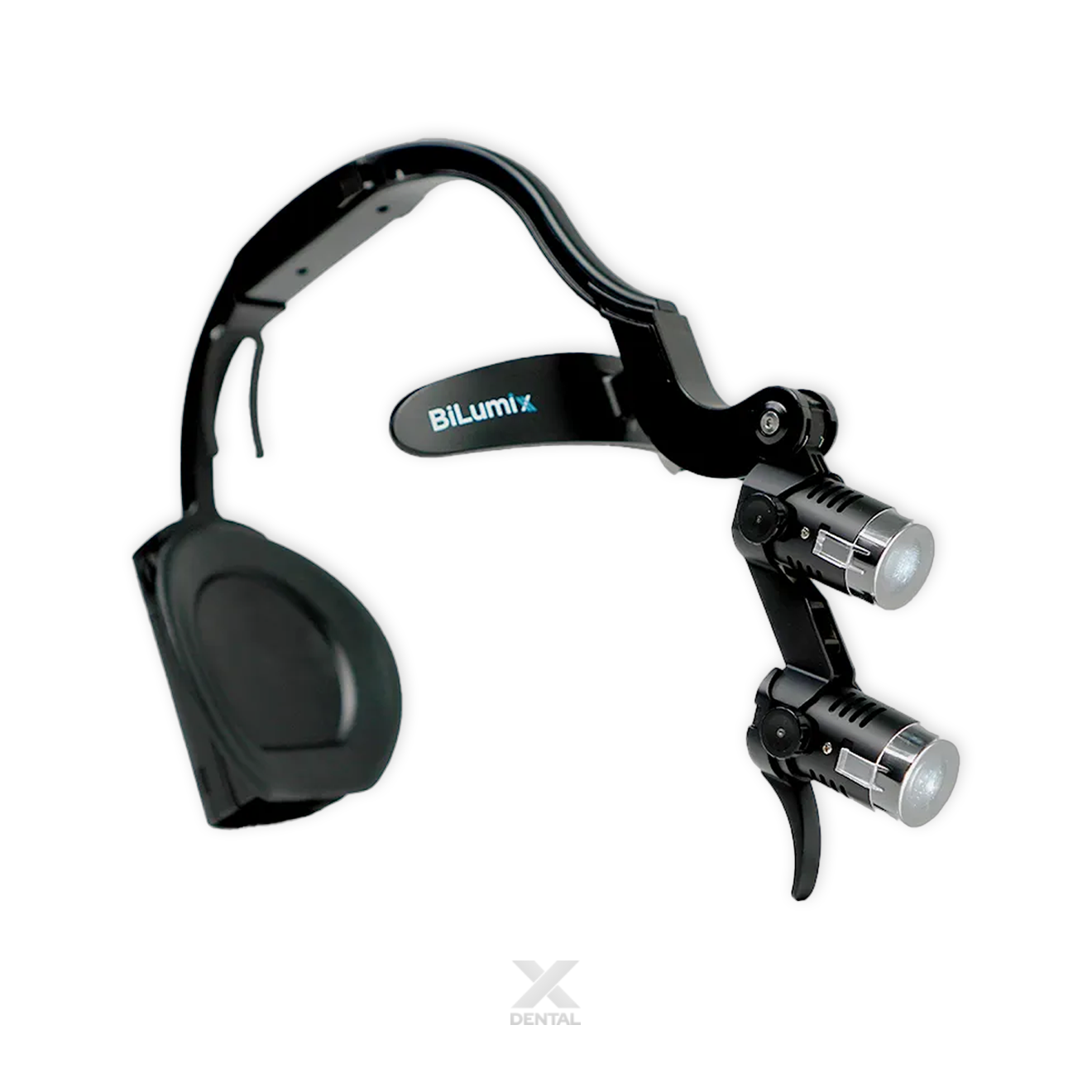

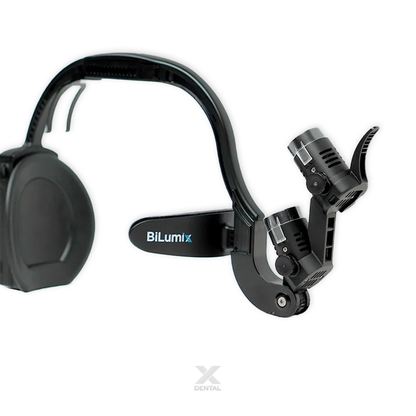

Shadowless Effect
Dual-angle lighting minimizes shadows -

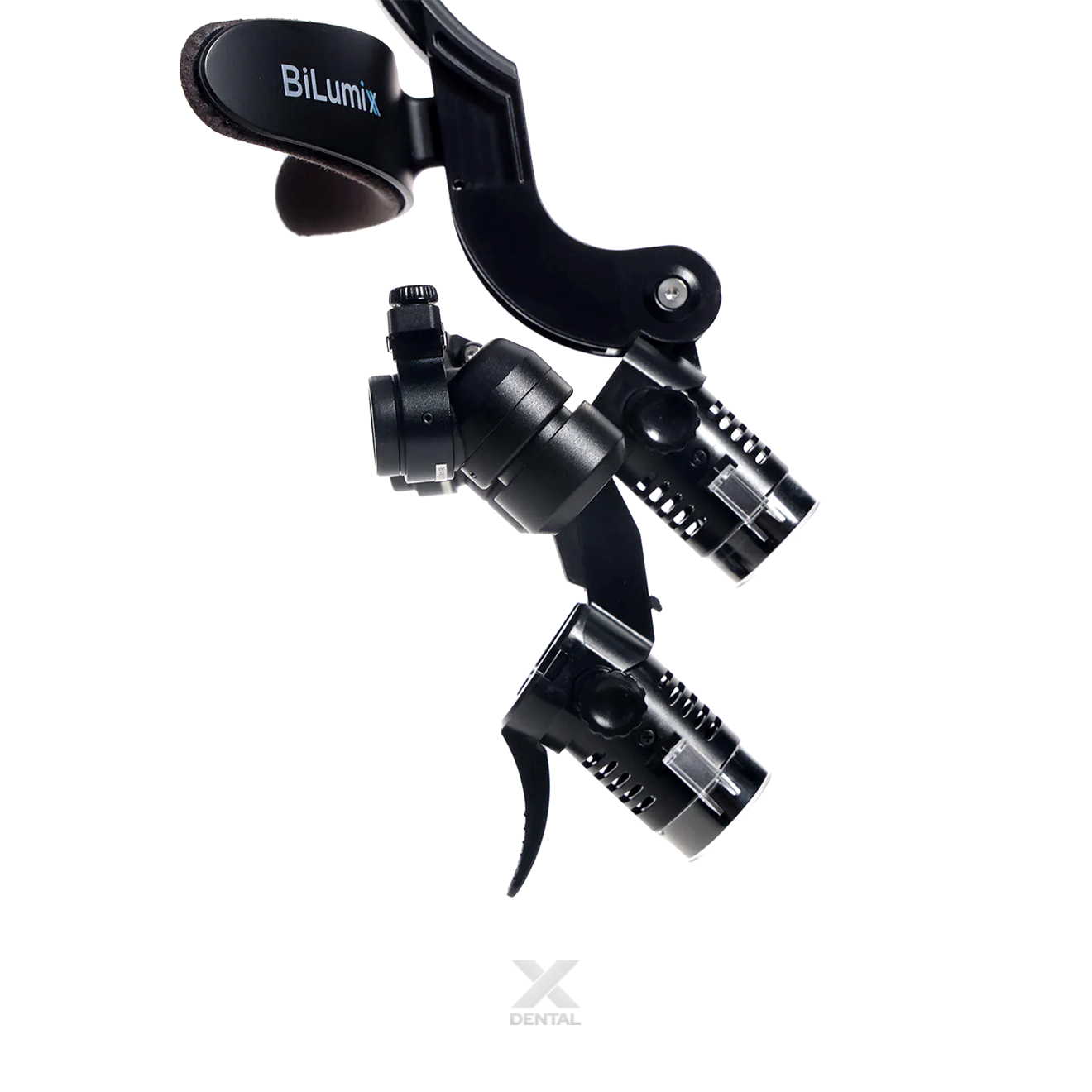

Focused Lights with Adjustable Angles
Bright spotlight -
Improved Design
Ergonomically re-designed with snug and secure fit -
One-touch power button
Easy tapping for faster and convenient -
Intuitive Power Indicator
Simple and clear view
Maintain Your Posture. Enhance Your Precision.

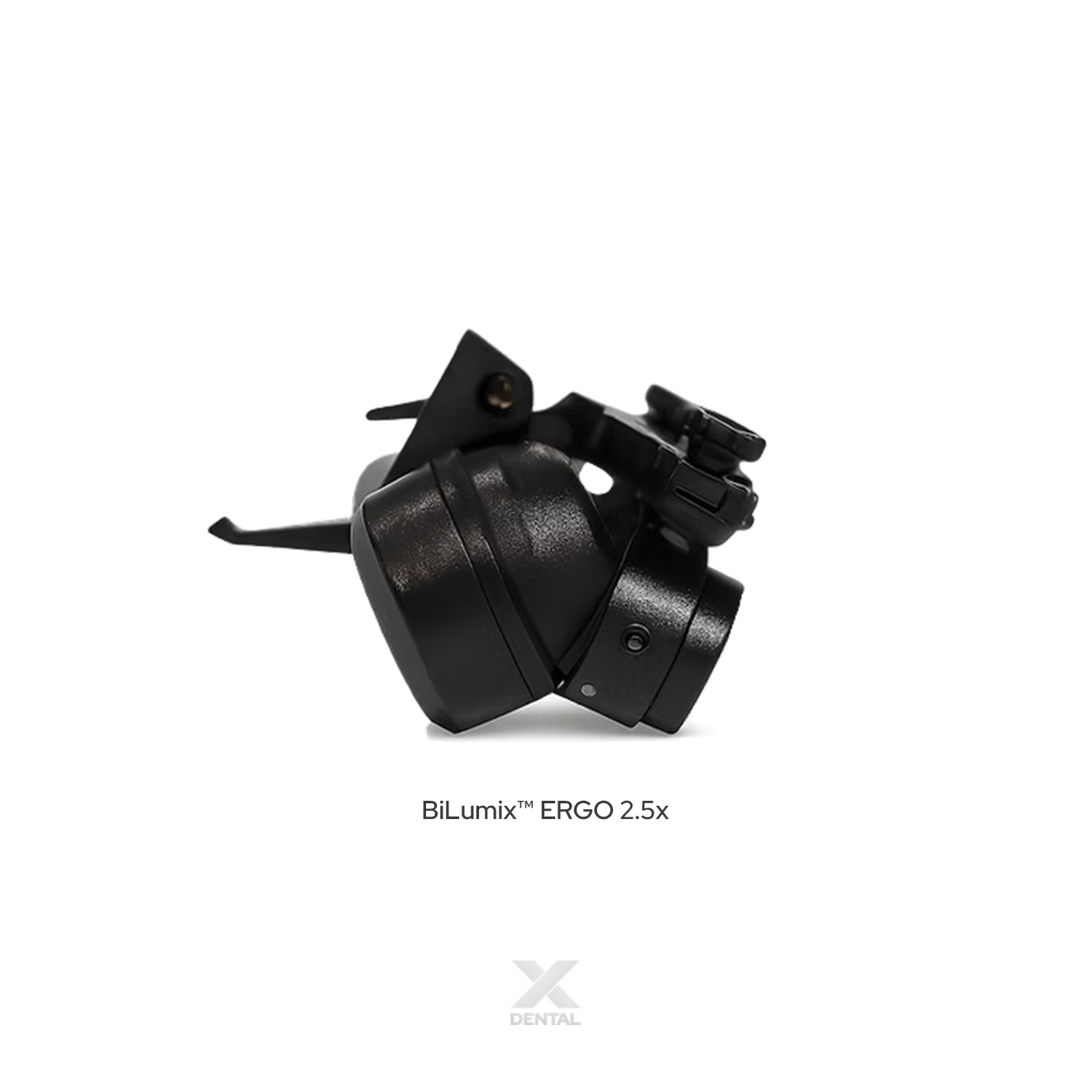

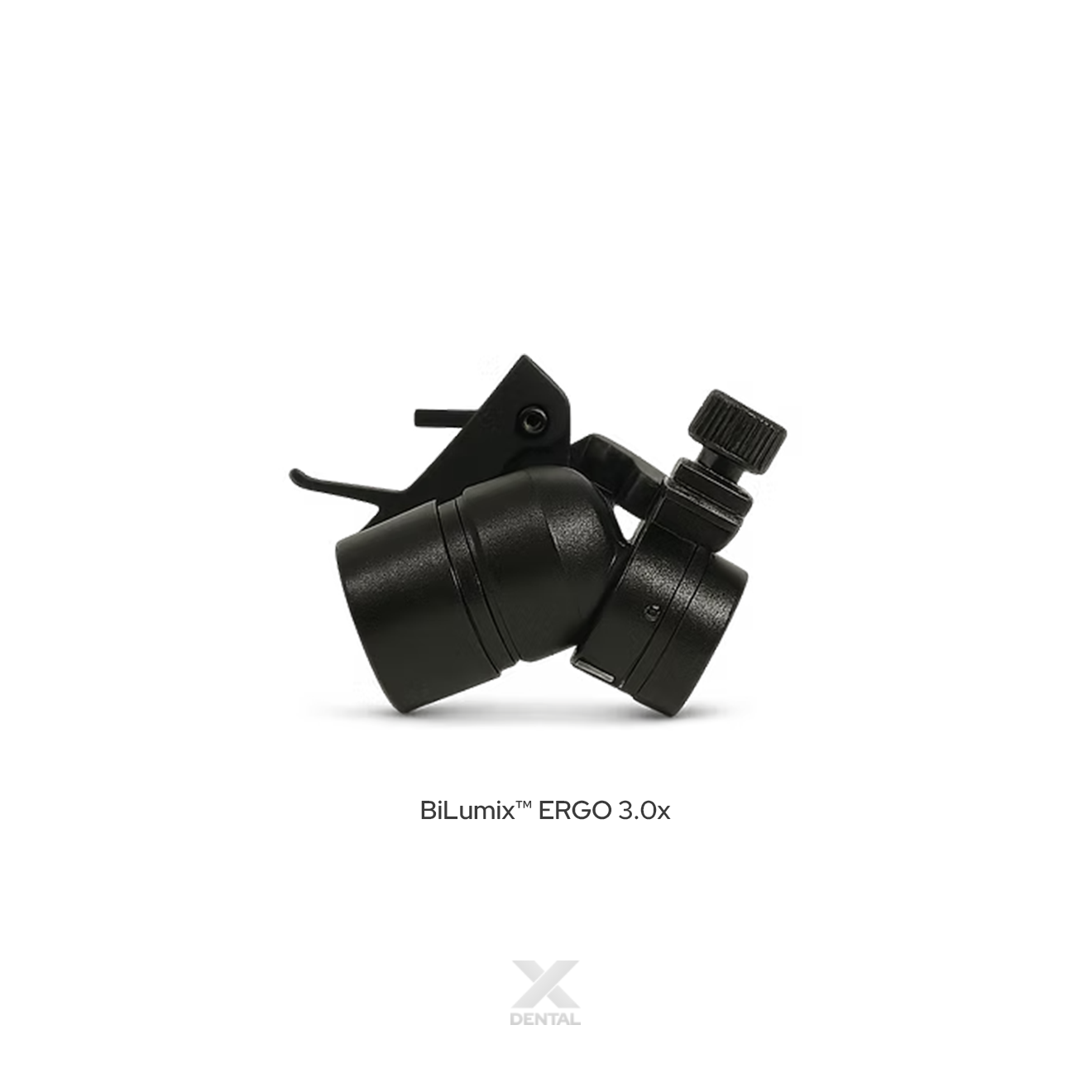

The Ergonomic Loupe is an advanced magnification solution engineered to protect your posture while delivering uncompromising visual clarity. Utilizing an innovative prismatic refractive optical system, it allows you to maintain a natural, upright head position while clearly viewing the treatment field. This ergonomic design significantly reduces neck and back strain, enabling medical and dental professionals to work comfortably for extended periods.
Included In Package
2 x Battery
(1 Battery Large, 1 Battery Medium)
1 x Battery Cradle
1 x USB type-c
1 x Travel Case
1 x Light Cap - Clear
1 x Mini hex key for adjusting joint
Specifications
-
Light Source
- Brightness
Max 150,000 Lux
(Intensity varies with distance)
- Lighting Type
Focused & Spotlights
(Adjustable light angle)
-
Weight(g)
- Headlamp (Only)
181.5g
- Headlamp with battery
248.3g
-
Dimensions
- Headlamp(mm)
Max: 405(W) x 115(D) x 167(H)
Min: 295(W) x 115(D) x 167(H)

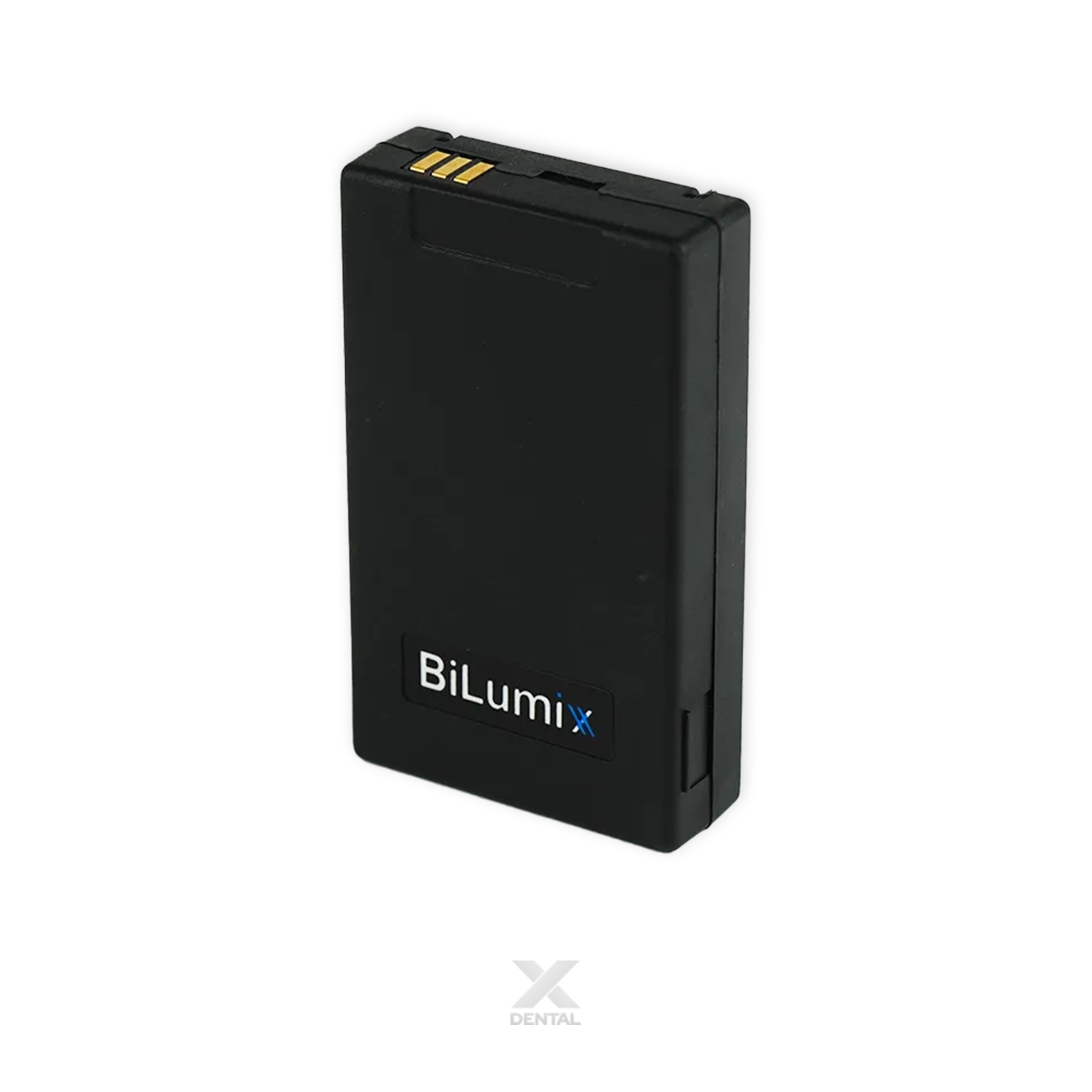

- Battery(mm)
39.1(W) × 14.2(D) × 66.0(H)
-
Battery Life
- With maximum intensity
(Using continuously)
About 3.5 hours (Large)
About 2.5 hours (Medium)
- With medium to low intensity
(Using continuously)
5 ~ 9 hours (Large)
4 ~ 8 hours (Medium) -
Battery
- Charging Time
About 2.5 hours
- Charger Output
7.4 Volts / 1200 mAh (Battery Medium)
7.4 Volts / 1700 mAh (Battery Large)
- Charger Input
USB Type-C (included) -

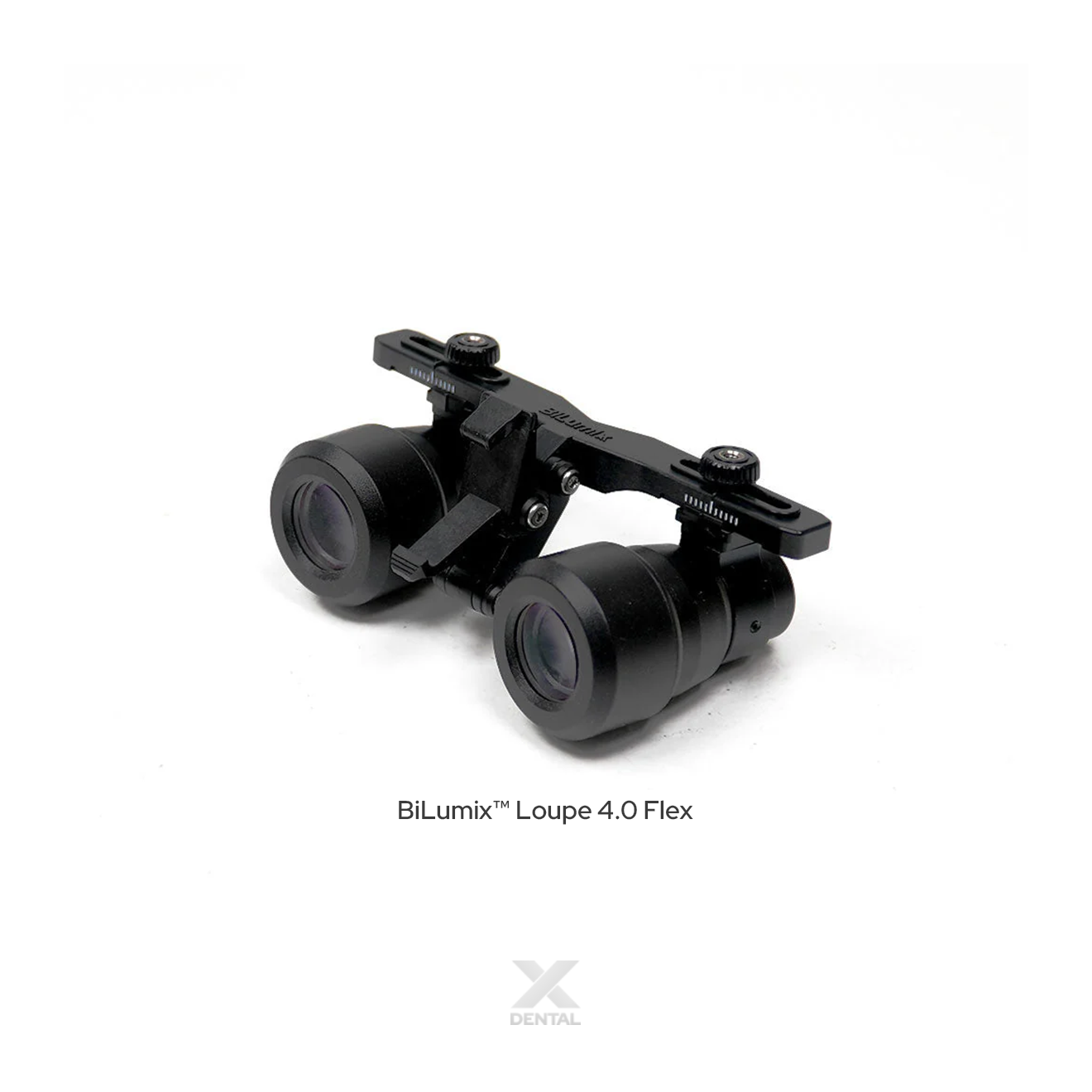

Compatible Loupes

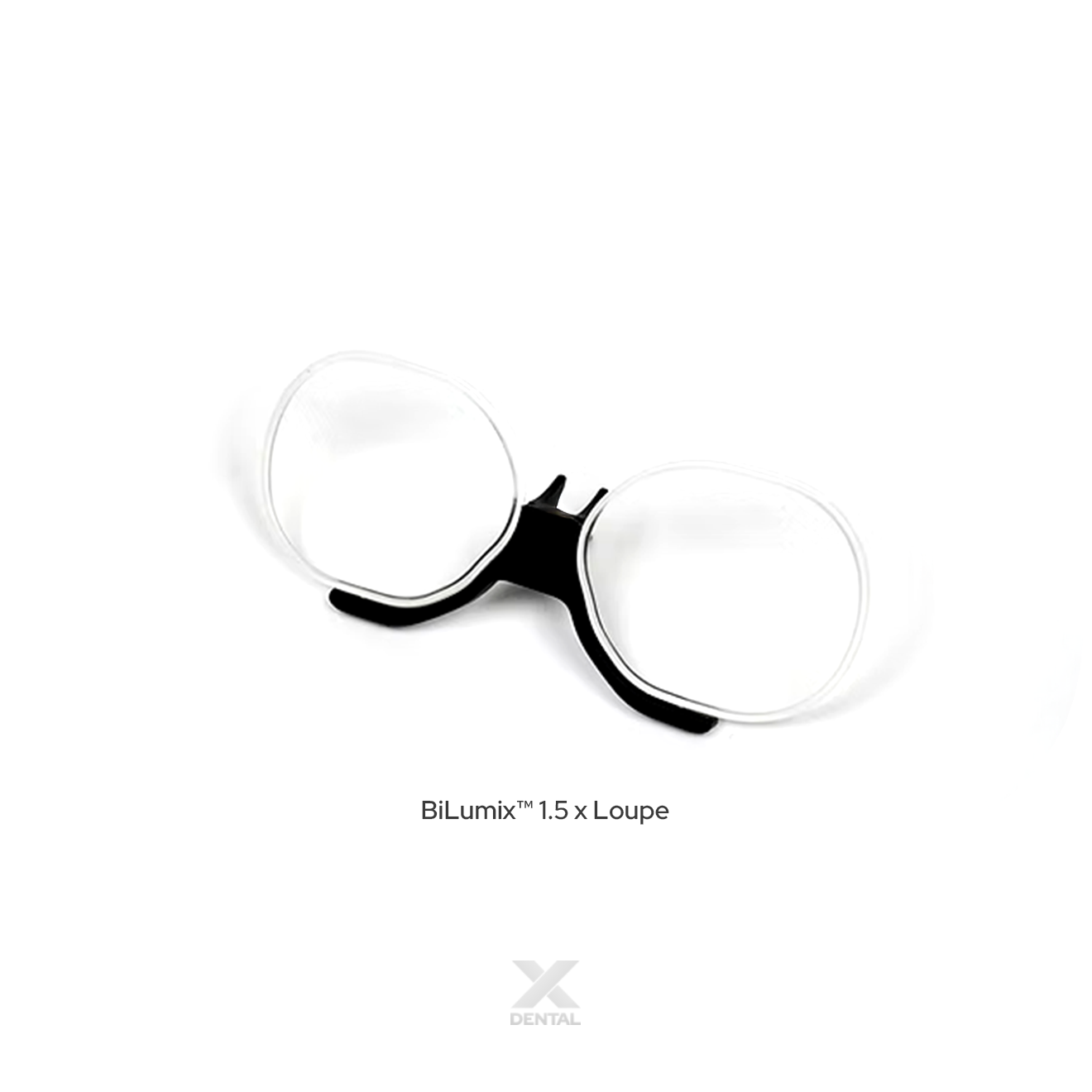

1.5x Loupe

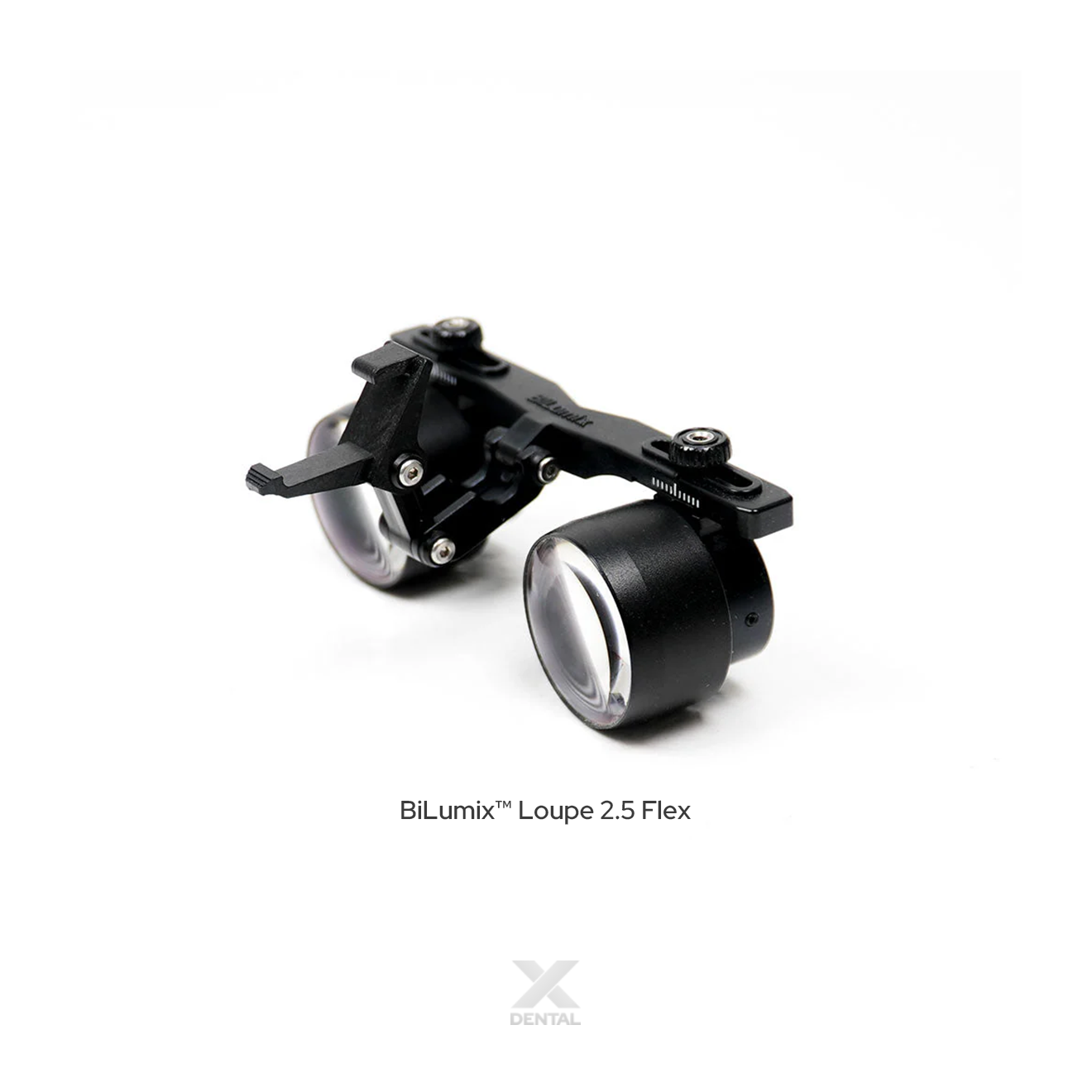

2.5x Loupe FLEX
4x Loupe FLEX
